Info & Video of 12oz coffee paper cup machine
Watch 12oz coffee paper cup machine operation demo video
More vidoe list on youtube: https://www.youtube.com/@Feenot/featured
New tech 12oz coffee paper cup machine speed is 150pcs/min, make 4~16oz paper cup bowl, all servo replace old bulky mechanism cup machine, reliable, easy maintenance.
Firstly adopt new tech all servo system instead of old bulky long shaft-cam-gear-chain mechanism system, which keep the machine easy maintenance.
Old cup machine very difficult to repair, maintenance, change parts, while any parts broken, require the user to move all the structure, which the user can not change or repair, even the supplier can not repair though send technician for repair.
While New tech ALL SERVO paper cup machine, one servo control one movement function, easy maintenance, and easy find the problems by sight, simple operate.
It makes paper cup bowl container after the following process: cup fan sucker and feed, cup side wall sealing by ultrasonic, lift the cup wall to main mold, bottom disc punch & insert to cup wall, heating, bottom knurling, cup top rim curling, discharge & rejection, count and packing.
While connect to the paper cup paking machine, make it full automatic, one packing machine online with 4, 6, paper cup bowl container machines.
Application: hot drinks coffee tea paper cups, cold colo cola juice milk paper cups, ice cream paper cups, fries chips cups, so on food package solution.
Specification
- Model: 150S Servo,
- Speed: 150 pcs/minute,
- Cup size: 4~16oz,
- Top: 45~100 mm,
- Bottom: 38~70 mm,
- Height: 45~135 mm,
- Material: 150~320 gsm 1PE & 2PE paper,
- Weight: 3400KG,
- Machine:2500x1650x1900mm,
- Collector: 1100 x 1100 x 2100mm (against cup size ),
- Total power: 35KW, Working power 15KW,
- Power: 380V 3-Phase 50/60 Hz,
- Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),
- Application: hot drink coffee tea paper cup, cold drink cola juic paper cup,

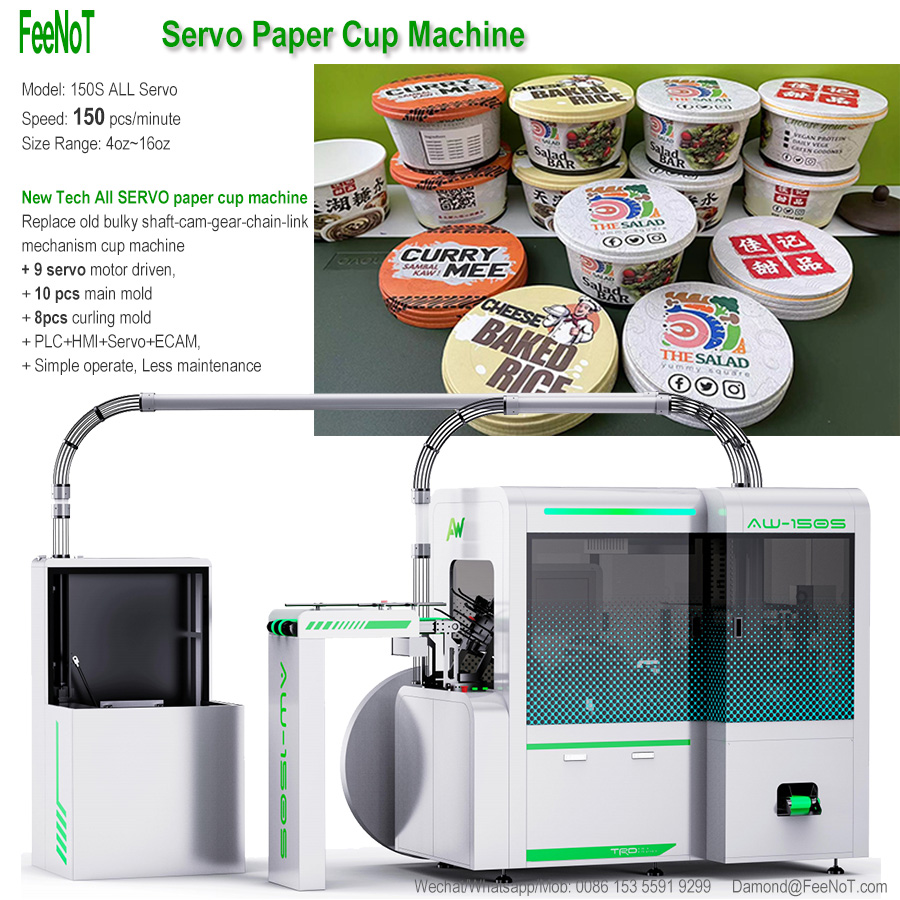

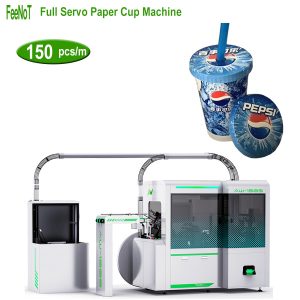

Picture of 12oz coffee paper cup machine
