80s dome paper lid machine new tech hot sale

80s dome paper lid machine
Price: $40,000
Speed : 60~80 pcs/minute;
Lid size: 55~112mm,
Height: 8~12 mm,
Feed roll paper, auto makt lid,
12 divide tube barrel cam,
12pcs main mold/tools,
Material: 280~320 gsm 1PE & 2PE paper,
Application: paper cup dome lid cover cap,

INQUIRY

BASIC INFO Advance Service Remark Price

Info & Video 80s dome paper lid machine

Watch 80s dome paper lid machine operation demo video

Paper cup dome lid cover making machine

More vidoe list on youtube: https://www.youtube.com/@Feenot/featured

New tech 80s dome paper lid machine speed 60~80 pcs/min, makes dome paper lid cover cap for paper cup bowl container, hot cold drinks dome paper lid, plastic free.

Firstly, paper cup lid machine is research and designed for match paper cups, more and more place ban plastic, paper cups is widely in market, but not a single paper lid match paper cups, so we spend 2 years to design the one piece paper lid cover cap for cup bowl container.

Second, right now we have the one piece paper lid style as following, straight lid, stack lid; flat lid, dome lid; center hole drink lid, side hole drink lid, hot drinks lid, cold drinks lid.

Paper cup lid cover machine is a full automatic machine with the functions: feed roll paper, auto pull paper and feed, auto creasing (make the forming guide line), emboss (can make emboss, logo), hole punch(make hole for straw), punching (punch the roll paper to lid open disc), auto feed disc to mold, heating, folding, knurling, and discharge, with convey and counter for collection, full automatic.

While connect to paper lid packinig machine, count and pack paper lid to plastic film bag, even paper bags, full automatic, plastic free.

It is an ideal paper container forming machine, making paper cup lid cover cap replace plastic, eco friendly, and paper lids are hot sale in markets.

Application: paper carton lid cover cap for cup bowl container, chips, tubes pack, snacks pack, ice cream cover, cheese cover, a lot of package industry.

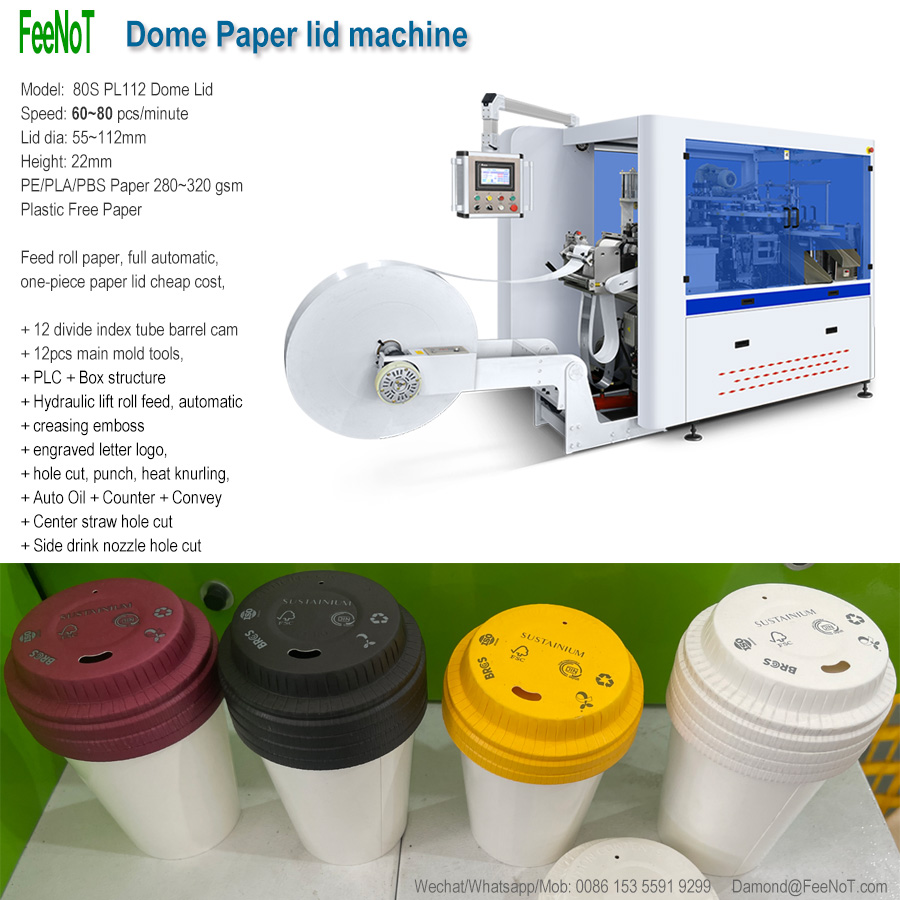

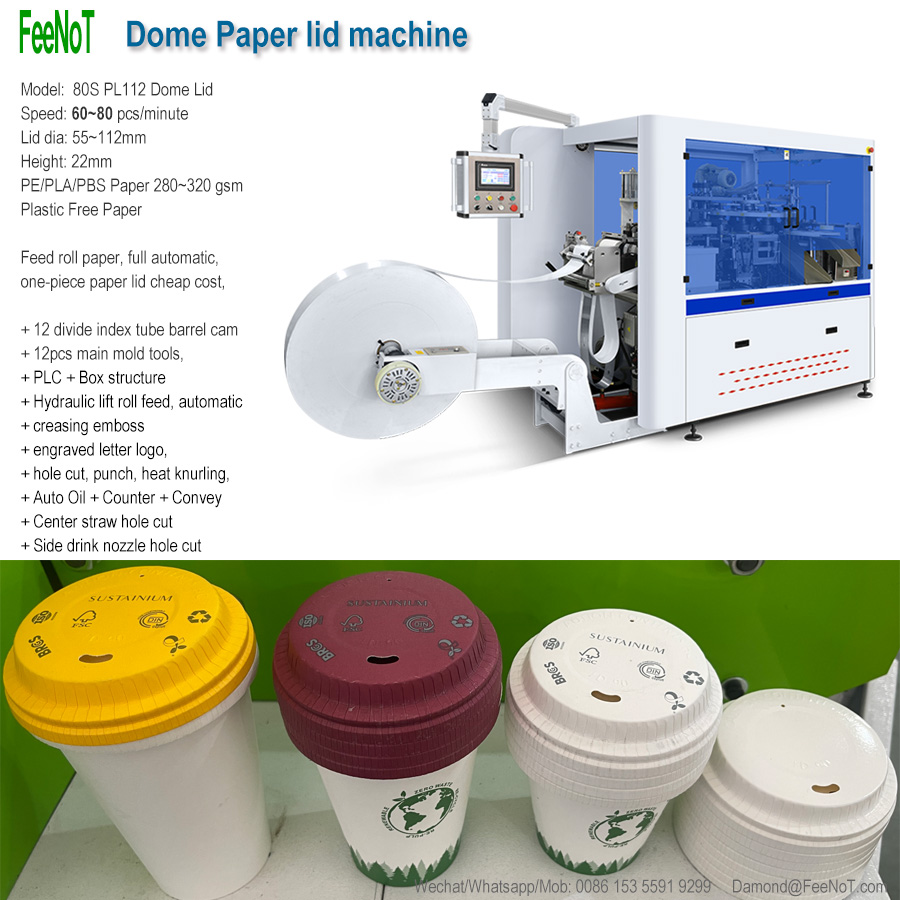

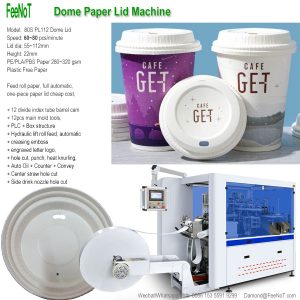

Specification of 80s dome paper lid machine

Model: 80S 112,
Speed : 60~80 pcs/minute;
Lid size: 55~112mm,
Height: 8~12 mm,
Material: PE/PLA/PBS coated cup paper,
Material: plastic free water coated paper (KOTKA barrier coating paper ),
Paper Weight: 35~55 um (0.35~0.55mm, 250~450 gsm), best 320gsm,
Weight: 3300KG,
Pack size: 3450 x 1380 x 2180mm,
Total power: 15KW,
Power: 380V 3-Phase 50/60 Hz,
Air Source : Air Pressure: 0.4Mpa, Air output: 100~300L/minute;
We Reserve the right to alter specifications without prior notice.
Application: paper lid cover cap for cup bowl container,
Application: cover for chips cheese tubes cake muffin package.

Advantage of paper lid cover cap

One piece paper lid, cost cheap,
feed roll paper, full automatic, easy operation,
Easy drink nozzle/hole cut, choose center hole X/O cut or not, make lid for cold & normal drink,
Simple easy side drink hole punch,
Inside emboss knurling lock, with paper lock-design, prevent water spread out,
ECO friendly, use paper material, all world plastic control or banned, will be great market,
Easy print beautiful artwork on paper lid than plastic lid (especially print together with cup artwork, looks excellent),
Amazing customize logo print, customize lid print, and excellent match the customize cups,

Shortage of paper lid cover cap

Paper lid can not lock very tightly same as plastic lid,
Carton paper lid cover can not make emboss drink nozzle like plastic lid,
Paper cover cap lid can not be re-used as plastic lid, one time use only,
The paper lid will be slowly unfolded/open while water into the lid knurling part (some kind of paper),
1PE Paper lid will be slowly unfolded by hot steam (need steam out hole cut, and need 2PE/double PE paper for hot),
Quality PE/PLA/PBS film coated paper make quality paper lid/cover, Recommend use 2PE paper to make paper lid

80s dome paper lid machine

Advantage of 80s dome paper lid machine

PLC+HMI+Servo, high speed, intelligent,
one piece/layer paper lid, cost cheaper,
feed roll paper, full automatic, less labor,
auto creasing, emboss, make the guide line,
logo engraved, replace print, save cost,
center straw hole cut,
side drink hole punch, coffee, cola, juice,
auto heating, knurling, make lid,
12 divide tube barrel cam,
12pcs main mold/tools,
2pcs ceramic hot air heating,
auto count, convey,
connect LP-450 lid packing machine, full automatic,
paper lid packing machine,

Service of 80s dome paper lid machine

Spare parts guarantee for one year in machine arrival.
We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems (post charges covered by buyer). All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
FREE: The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.(buyer should pay for his cost of ticket, hotel, food, etc).
The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.
Technician overseas Cost include:
1, Mechanic allowance, (for example one machine training 5days, on the way 2days, total 7days, $150*7=$1050).
2, Ticket cost, round ticket cost (different country the cost different),
3, Visa cost, some country need visa cost,

Remark of 80s dome paper lid machine

Price Term: FOB Ningbo port, China. (INSURANCE OUT OF CHINA COVERED BY THE BUYER)
Payment Term: T/T payment (30% deposit, 70% before delivery). ** The buyer is welcomed to test machine before delivery.
Delivery Time: 30~50 working days at sight the deposit. (actual delivery time given while order confirm)
Package: Standard export package. (need special package, please info us in advance).
Warranty: One year from the equipment arrival.
Power Source: The power source: 380V 3-Phase, 50/60Hz (R, S, T, N line, please confirm power source before start order).
