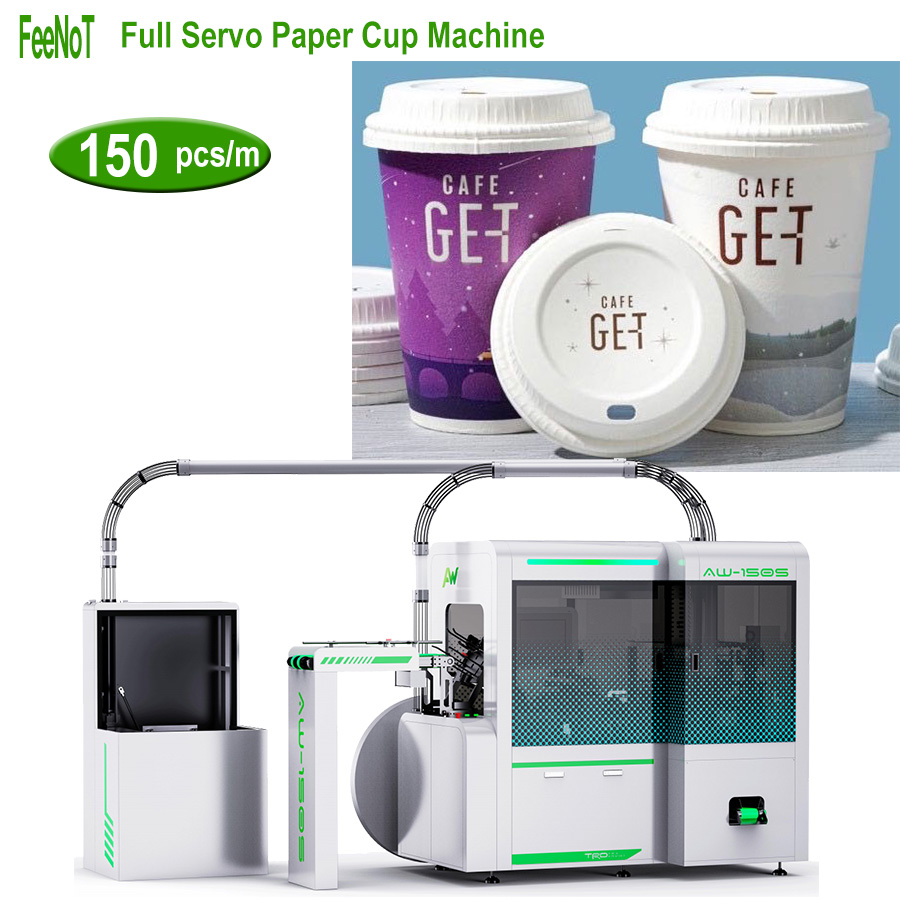

150s all servo paper cup machine new tech hot

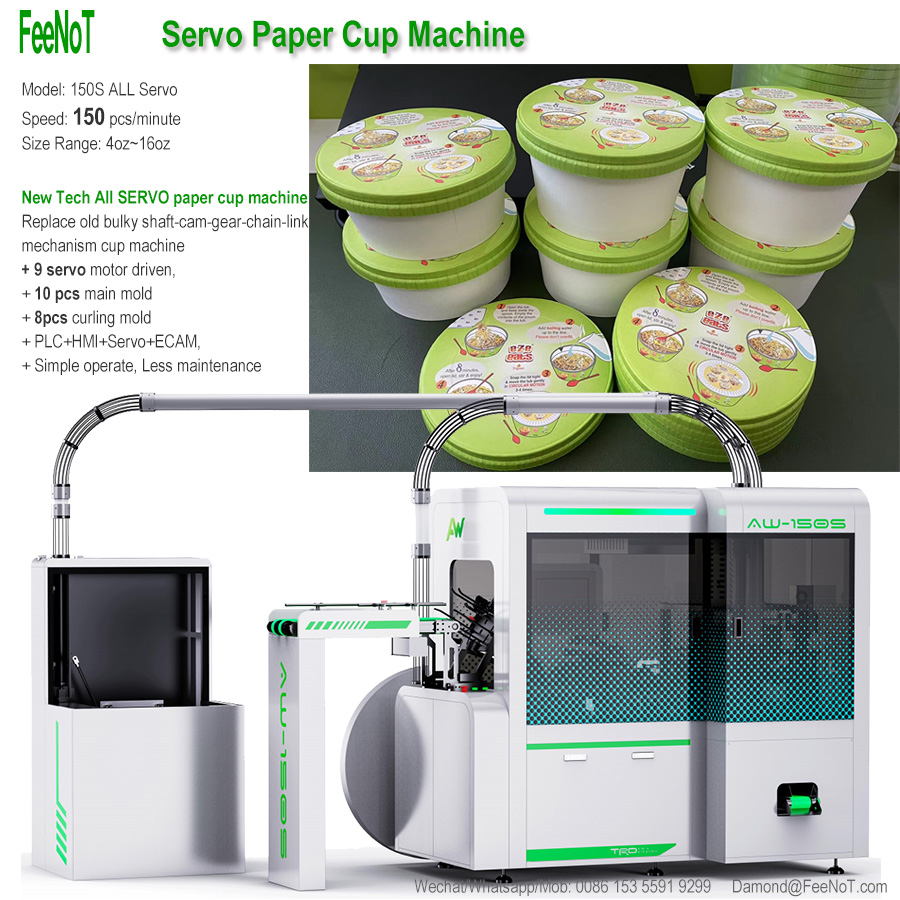

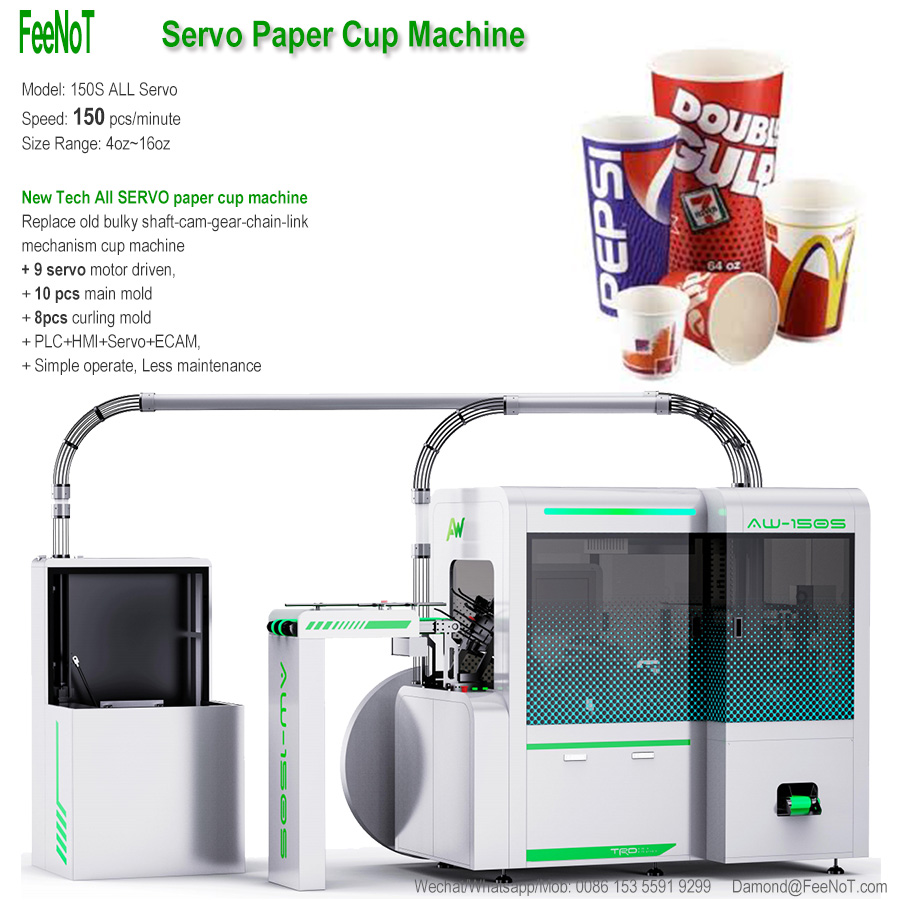

150s all servo paper cup machine
Price: US$40,000,
Speed: 150~160 pcs/minute,
Cup size: 4~16oz,
Height: 45~135 mm,
New tech servo replace old mechanism,
One servo control one part, less maintenance,
Quality servo high efficient, stable, reliable,
10pcs main mold + 8pcs curling mold,
Application: hot cold coffee tea cola juice paper cup,

INQUIRY

BASIC INFO Advantage Service Remark Price

Video

New tech 150s all servo paper cup machine speed 150 pcs/min, making 4~16oz hot cold drinks paper cup, hot sale, stable reliable, less maintenance, easy operate.

Adopt new tech all servo motor instead of old bulky long shaft-cam-gear-chain mechanism system, old cup machine very difficult to change parts, if any parts broken, need move all the structure, New tech all servo paper cup machine each servo control one movement function, easy maintenance, high efficient.

It is an ideal equipment to make paper cup bowl container with the function of paper cup fan blank feed, cup wall sealing, cup body lift and transfer, bottom punch, heating, knurling, cup top curling, finished cups discharge, count, collect.

Watch 150s all servo paper cup machine operation demo video

More vidoe list on youtube: https://www.youtube.com/@Feenot/featured

Specification of paper cup machine

Model: 150S Servo,
Speed: 150 pcs/minute,
Cup size: 4~16oz,
Top: 45~100 mm,
Bottom: 38~70 mm,
Height: 45~135 mm,
Material: 150~320 gsm 1PE & 2PE paper,
Weight: 3400KG,
Machine:2500x1650x1900mm,
Collector: 1100 x 1100 x 2100mm (against cup size ),
Total power: 35KW, Working power 15KW,
Power: 380V 3-Phase 50/60 Hz,
Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),
Usage: hot drink coffee tea paper cup, cold drink cola juic paper cup,

Advantage of 150s all servo paper cup machine

Servo drive system instead of old complicated mechanism transmission,
Old bulky long shaft-cam-gear easy wear out, broken,
Servo+ECAM+PLC+HMI, efficient, intelligent, stable, reliable,
9sets Servo motor system instead of cam-shaft-chain-gear-links, accuracy, stable, reliable, Simple operate, easy maintenance.
10pcs main mold plate rotate Servo,
8pcs cup curling mold rotate Servo,
paper cup fan feed drive Servo,
cup-fan blank suck and cup wall sealing assembly Servo,
paper cup wall turn Servo,
cup wall lift transfer Servo,
cup bottom roll feed Servo,
bottom punch Servo,
Cup bottom heating knurling up/down servo,
10pcs quality ally cup mold, angle 36 degree,
8pcs curling mold (twice curling), angle 45 degree, ,
30mm Thick Whole steel board structure base, stable,
cup fan blank feeder 1 meter (high speed, feed more blanks one time)
Cup wall welding: Ultrasonic + ceramic hot air,
Bottom heating: Ceramic hot air (2pcs 4.4KW),

150s all servo paper cup machine

Advantage of 150s all servo paper cup machine

Servo drive system instead of old complicated mechanism transmission,
Old bulky long shaft-cam-gear easy wear out, broken,
Servo+ECAM+PLC+HMI, efficient, intelligent, stable, reliable,
9sets Servo motor system instead of cam-shaft-chain-gear-links, accuracy, stable, reliable, Simple operate, easy maintenance.
10pcs main mold plate rotate Servo,
8pcs cup curling mold rotate Servo,
cup fan feed drive Servo,
cup-fan suck and cup wall sealing assembly Servo,
cup wall turn Servo,
cup wall lift transfer Servo,
bottom roll feed Servo,
bottom punch Servo,
bottom heating knurling up/down servo,
10pcs quality ally cup mold, angle 36 degree,
8pcs curling mold (twice curling), angle 45 degree, ,
30mm Thick Whole steel board structure base, stable,
cup fan blank feeder 1 meter (high speed, feed more blanks one time)
Cup wall welding: Ultrasonic + ceramic hot air,
Cup bottom heating: Ceramic hot air (2pcs 4.4KW),

Service of 150s all servo paper cup machine

Spare parts guarantee for one year in machine arrival.
We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems (post charges covered by buyer). All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
FREE: The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.(buyer should pay for his cost of ticket, hotel, food, etc).
The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.
Technician overseas Cost include:
1, Mechanic allowance, (for example one machine training 5days, on the way 2days, total 7days, $150*7=$1050).
2, Ticket cost, round ticket cost (different country the cost different),
3, Visa cost, some country need visa cost,

Remark of 150s all servo paper cup machine

Price Term: FOB Ningbo port, China. (INSURANCE OUT OF CHINA COVERED BY THE BUYER)
Payment Term: T/T payment (30% deposit, 70% before delivery). ** The buyer is welcomed to test machine before delivery.
Delivery Time: 30~50 working days at sight the deposit. (actual delivery time given while order confirm)
Package: Standard export package. (need special package, please info us in advance).
Warranty: One year from the equipment arrival.
Power Source: The power source: 380V 3-Phase, 50/60Hz (R, S, T, N line, please confirm power source before start order).
