BASIC INFO
Video & Info
Watch Carton erecting machine 800 servo operation demo video
More vidoe list on youtube: https://www.youtube.com/@Feenot/featured

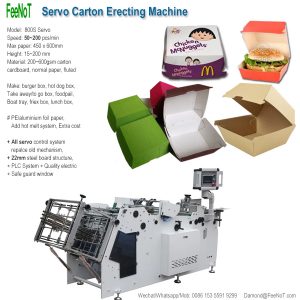

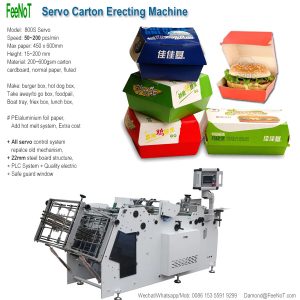

New tech Carton erecting machine 800 servo has 4 servo driven, speed 50~200pcs/min, make burger box, fries box, boat tray, take away box, hot sale, simple operate.
Firstly it is an automatic machine, feed box blank sheet, auto glue & forming the shape.
We use all servo motor replace old mechanism cam gear chain, which provide high efficient and stable performance, long life time, servo system save exchange mold time.
specification of Carton erecting machine 800 servo
- Model: 800 4S
- Speed: 50~200 pcs/minute, one line,
- Paper size: 100×100 ~ 450x600mm,
- Welding method: Water-glue adhesive,
- Material: 200~600gsm carton cardboard paper,
- Material thickness: Max. 1.5mm,
- Total power: 5KW,
- Electric power : 380V 3-Phase 50/60 Hz,
- Size: 3600 x 1500 x 1700 mm,
- Weight: 2200KG,
- Need Air (pressure:0.6Mpa, Output:300~500 L/m),
- Available to make machines and molds on user order,
- Application: burger box, boat tray, take away box, friex box,
specification of 1600 double line
- Model: 1600 5S , 5sets servo,
- Speed: 40~180 pcs/minute, double line,
- Paper size: Max. 450x400mm,
- Weight: 2800KG,
- Size: 3600 x 1850 x 1700 mm,
Advantage of Carton erecting machine 800 servo
- four servo drive, simple operate, less maintenance,
- Double line 1600, double speed, two box ,
- Servo feed paper, easy change mold, smoothly,
- PLC+HMI with program control, intelligent,
- Servo convey, stable and reliable,
- Quality servo drive forming, directly, easy handle,
- Making carton tray box container,
Box tray shape
- One block paper box, 4-corner box without cover, Max. 200pcs/min,
- Fries chips box tray: Max. 150pcs/min,
- Burger box,hot-dog box : Max. 150pcs/min,
- Food pail, DEEP take away to go box: Max. 100pcs/min,
Remark of Carton erecting machine 800 servo
- Price Term: FOB Ningbo port, China. (INSURANCE OUT OF CHINA COVERED BY THE BUYER)
- Payment Term: T/T payment (30% deposit, 70% before delivery). ** The buyer is welcomed to test machine before delivery.
- Delivery Time: 30~50 working days at sight the deposit. (actual delivery time given while order confirm)
- Package: Standard export package. (need special package, please info us in advance).
- Warranty: One year from the equipment arrival.
- Power Source: The power source: 380V 3-Phase, 50/60Hz (R, S, T, N line, please confirm power source before start order).
