Video of Colombia soup paper bowl making machine new tech usa
Watch Colombia soup paper bowl making machine new tech usa operation demo video
More vidoe list on youtube: https://www.youtube.com/@Feenot/featured

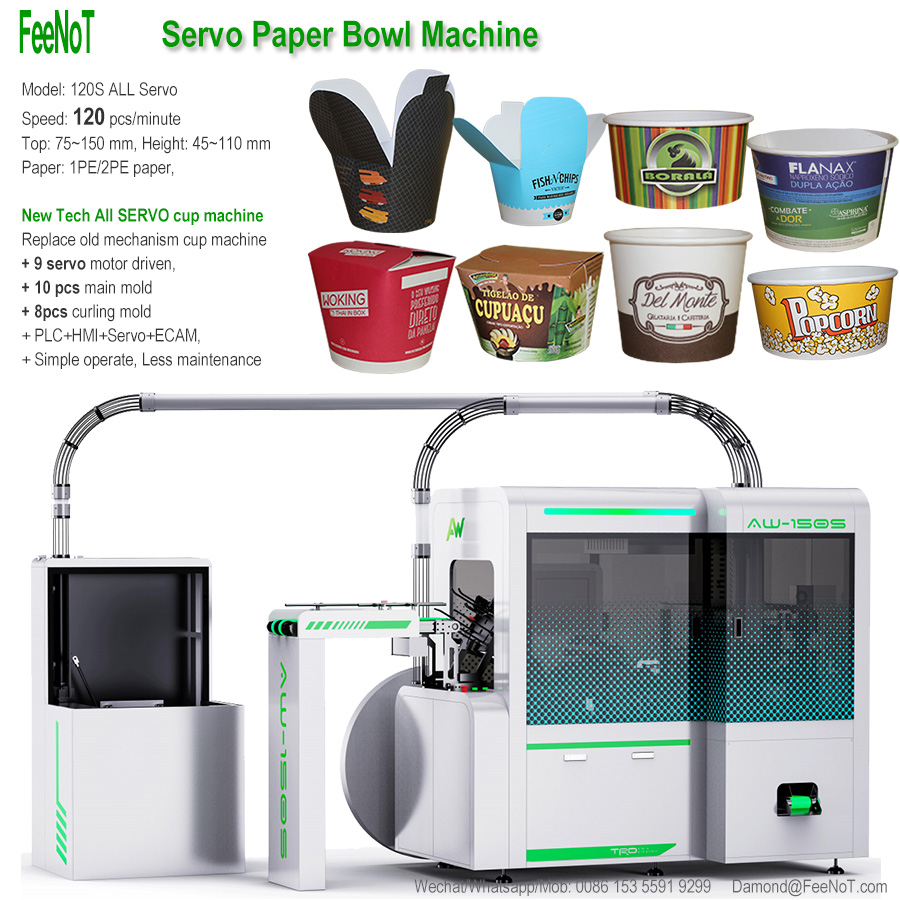

New tech Colombia soup paper bowl making machine new tech usa speed 120 pcs/min, make 20~35oz hot cold soup noodle salad paper bowl container, all servo replace old cup machine mechanism, reliable.
Firstly adopt new tech all servo system instead of old bulky long shaft-cam-gear-chain mechanism system, which keep the machine easy maintenance.
Old cup machine very difficult to repair, maintenance, change parts, while any parts broken, require the user to move all the structure, which the user can not change or repair, even the supplier can not repair though send technician for repair.
New tech all servo paper cup machine, just only one servo control one movement function, easy maintenance, and easy find the problems by sight, simple operate.
It makes paper cup bowl container after the following process: cup fan sucker and feed, cup side wall sealing by ultrasonic, lift the cup wall to main mold, bottom disc punch & insert to cup wall, heating, bottom knurling, cup top rim curling, discharge & rejection, count and packing.
While connect to the paper cup paking machine, make it full automatic, one packing machine online with 4, 6, paper cup bowl container machines.
Widely application: carton paper bowl container for food soup salad juice, package. salad paper bowls, soup paper bowls, noodle paper bowls, instant noodle box.
Colombia soup paper bowl making machine new tech usa specification
- Colombia soup paper bowl making machine new tech usa
- Model: 120S,
- Speed: 120 pcs/minute,
- Cup size: 20~35oz,
- Top: 75~150 mm,
- Bottom: 70~130 mm,
- Height: 55~110 mm,
- Material: 190~320 gsm 1PE & 2PE paper,
- Weight: 3500KG,
- Machine:2600x1750x1900mm,
- Collector: 1100 x 1100 x 2100mm (against cup size ),
- Total power: 35KW, Working power 15KW,
- Power: 380V 3-Phase 50/60 Hz,
- Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),
- Usage: hot drink coffee tea paper cup, cold drink cola juic paper cup,
