Corrugated paper cup machine dw22 new tech hot

corrugated paper cup machine dw22
Price: $19,000
Model: 80S DW22,
Speed: 70~80 pcs/minute,
Cup size: 4~22oz,
150~320gsm film coated paper, paper glossy print,
Circle spray water glue inside sleeve wall,
Water Glue (polyvinyl acetate emulsion),
Application: ripple double wall paper cup,

INQUIRY

BASIC INFO Advance Service Remark Price

Info & Video

Watch corrugated paper cup machine dw22 operation demo video

More vidoe list on youtube: https://www.youtube.com/@Feenot/featured

New tech corrugated paper cup machine dw22 speed 70 pcs/min, make ripple double wall paper cups, wrap a jacket sleeve on inner cup, two layer paper cups, hot sale.

Firstly double wall ripple cup sleeve forming & adhesive machine is designed for market requirement, while use paper cups hold hot water coffee tea, one layer paper cup is hot and hurt finger, so we make a second wall help to prevent hot.

Double wall style: hollow paper cup sleeve machine, ripple paper cup sleeve machine,

Double wall cup machine is an automatic machine, after running a whole process as: wall sleeve fan feed and suck, hot melt glue spray (option), ultrasonic sealing (copper option ), lift wall to main mold, bottom fold, knurling, transfer to stick plate, spray a circle water glue (servo motor control, rotate a circle) inside the sleeve wall, suck cup down to sleeve, push the sleeve into cup rim space, discharge, count and collect.

While connect to the paper cup paking machine, make it full automatic, one packing machine online with 4, 6, paper cup bowl container machines.

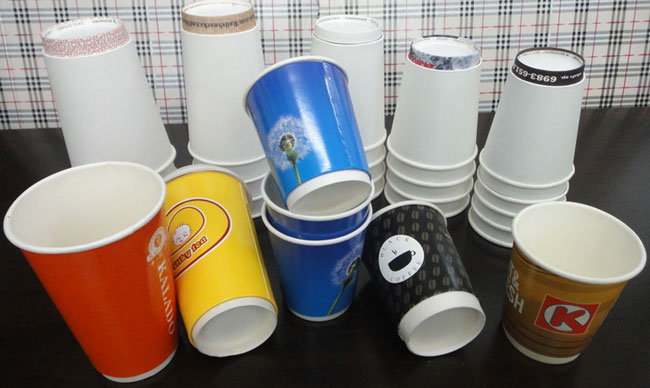

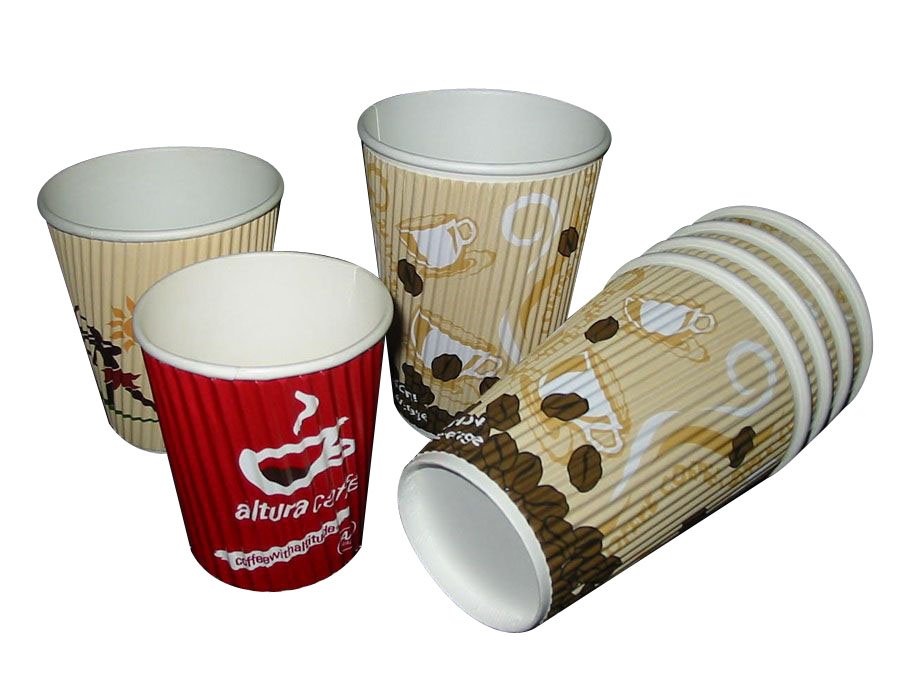

Widely application: ripple wall paper cups, double wall paper cups, corrugated paper cups.

specification of corrugated paper cup machine dw22

corrugated paper cup machine dw22
Model: 80S DW22,
Speed: 70~80 pcs/minute,
Cup size: 4~22oz,
Top: 45~100 mm,
Bottom: 30~72 mm,
Height: 30~135 mm,
Material: 150~320gsm film coated paper, paper with glossy/varnish print,
Weight: 2400KG,
Machine:2350x960x1700mm,
Collector: 900 x 700 x 2100mm (against cup size )
Total power: 6KW,
Power: 380V 3-Phase 50/60 Hz,
6 divide open cam ,
6pcs Aluminium Alloy mold,
PLC + Sensors + Servo motor,intelligent, automatic oil system,
Sleeve wall welding by ultrasonic,
Auto bottom folded (hollow double wall cup sleeve),
Circle spray water glue inside sleeve wall,
Water glue stick the double wall sleeve and inner cup.
Water Glue (polyvinyl acetate emulsion),
Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),
Application: ripple double wall paper cups bowl container,

corrugated paper cup machine dw22

Advantage of corrugated paper cup machine dw22

6 divide open cam ,
6pcs Aluminium Alloy mold,
PLC + Sensors + Servo motor,intelligent, automatic oil system,
Sleeve wall welding by ultrasonic,
Auto bottom folded (hollow double wall cup sleeve),
Circle spray water glue inside sleeve wall,
Water glue stick the double wall sleeve and inner cup.
Water Glue (polyvinyl acetate emulsion),

Service of corrugated paper cup machine dw22

Spare parts guarantee for one year in machine arrival.
We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems (post charges covered by buyer). All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
FREE: The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.(buyer should pay for his cost of ticket, hotel, food, etc).
The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.
Technician overseas Cost include:
1, Mechanic allowance, (for example one machine training 5days, on the way 2days, total 7days, $150*7=$1050).
2, Ticket cost, round ticket cost (different country the cost different),
3, Visa cost, some country need visa cost,

Remark of corrugated paper cup machine dw22

Price Term: FOB Ningbo port, China. (INSURANCE OUT OF CHINA COVERED BY THE BUYER)
Payment Term: T/T payment (30% deposit, 70% before delivery). ** The buyer is welcomed to test machine before delivery.
Delivery Time: 30~50 working days at sight the deposit. (actual delivery time given while order confirm)
Package: Standard export package. (need special package, please info us in advance).
Warranty: One year from the equipment arrival.
Power Source: The power source: 380V 3-Phase, 50/60Hz (R, S, T, N line, please confirm power source before start order).
