Info & Video cup paper lid cover packing machine LP450
Watch paper lid cover packing machine LP450 operation demo video
More vidoe list on youtube: https://www.youtube.com/@Feenot/featured
New tech cup paper lid cover packing machine LP450 speed 10~30 bags/min, auto count, pack paper lid cover cap into plastic film bag, bag auto 3 side sealing.
Packing machine is an automatic machine, widely packing solid items.
Devoloped on customer requirement, to packing paper lid cover cap, with auto count, lid slide down, puch and collect, stack, pull every 50pcs lid into film bag, machine auto make 3 side sealing plastic film bag, online with paper cup lid machine, full automatic.
Widely used to pack solid items, such as soap, biscuits, bread, instant food, moon cakes, cakes, candies, medicines, daily necessities, five kinds of metal parts, cartons, paper cups, paper lids, paper plates, trays, etc.
Application: making 3 side seal plastic film bag, packing paper lid cover cap, paper cup bowl container, paper dish plate tray, paper box container, etc.

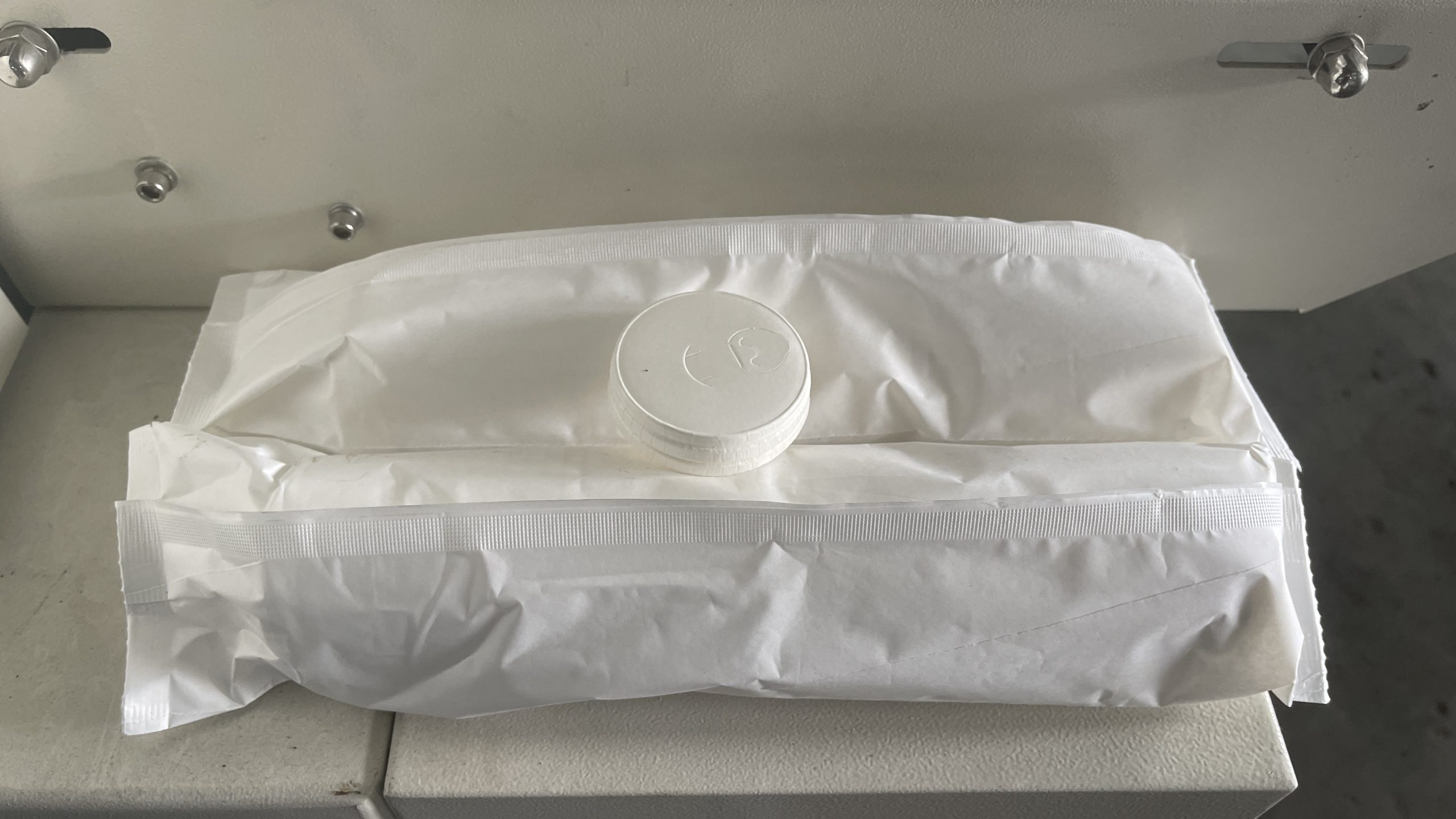

New technology, use 80gsm light PE film coated paper, auto make 3side seal paper bag, and pack paper lid cover cap cup box container.

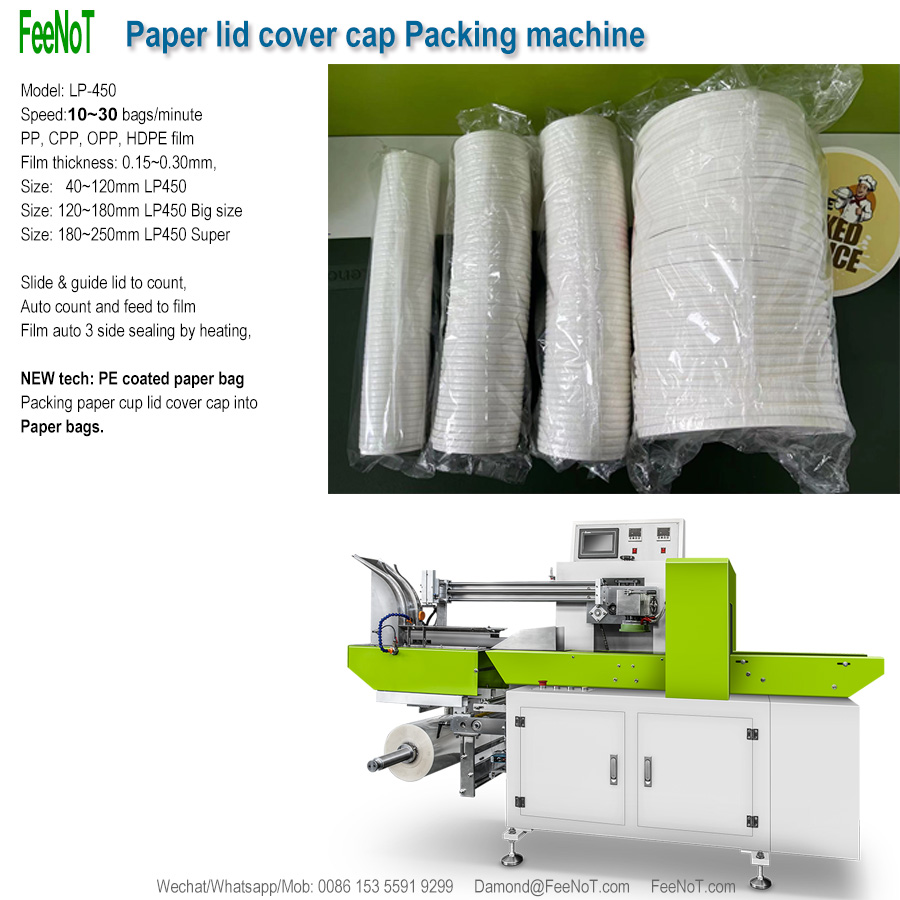

Specification of Cup paper lid cover packing machine LP450
- Speed: 10~30 bags/minute,
- Lid diameter: 40~ 120 mm diameter,
- Bag length: 100~600mm,
- Max film width: 450mm,
- Material Film: OPP, CPP, HDPE, LDPE, PP, POF,
- Film thickness: 15~30 um (0.15~0.3 mm),
- Max film unwinding diameter: 450mm,
- Plastic Film core: 3inch,
- Total power: 2.8KW,
- Power source: 220V single phase, 50Hz,
- Air: pressure 0.6MPa, out put 300~500 L/minute,,
- Weight: 500KG,
- Size: 2250 x 800 x 1340 mm on order, against lid size,
- Power: 380V 3-Phase 50/60 Hz,
- Air Source : Air Pressure: 0.4Mpa, Air output: 100~300L/minute;
- We Reserve the right to alter specifications without prior notice.
- Application: packing paper lid cover cap cup bowl container,
- Other application: packing solid items, soup, plate, dish, box, metal,
Flow chart of packing paper lid cover cap
- the lid come out from lid machine slide to pack machine,
- auto feed lid and count to stack function,
- after lid arrival set number, send to film pack machine,
- PLC program control, sensor detect lid, send film (set length),
- wall horizontal seal & vertical side seal cut blade.
- convey transfer packed bag to carton box or pack area.
Flow chart of packing paper cup bowl containers
- Connect to cup machine, every 20 30 50cups stack feed,
- Sensor and PLC keep stable and reliable.
- Film wall gear heating seal & two side seal blade cut,
- Convey the bags to carton box or connect to shrink machine.
- Can set double row or single raw pack.
- Against customer order, connect 2, 4, 6, sets cup machines.
cup paper lid cover packing machine
Advantage of Cup paper lid cover packing machine LP450
- Adopt SERVOmotor control movement, the film length set and no need to debug, save time and film.
- Adopt PLC control, touch screen, easy operate,
- Adopt Thermostat control temperature, stable & even,
- Sealing & cut: reliable design keep sealing strong & perfect.
- Self-checking function, trouble can be read easily.
- Highly sensitive sensor color mark tracking makes the cutting position more accurate.
- Short of air auto alarm and stop,
- Quality pneumatic parts and electric elements,
- Compact structure, stable function and simple operation.
Service of Cup paper lid cover packing machine LP450
- Spare parts guarantee for one year in machine arrival.
- We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems (post charges covered by buyer). All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
- Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
- FREE: The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.(buyer should pay for his cost of ticket, hotel, food, etc).
- The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.
- Technician overseas Cost include:
- 1, Mechanic allowance, (for example one machine training 5days, on the way 2days, total 7days, $150*7=$1050).
- 2, Ticket cost, round ticket cost (different country the cost different),
- 3, Visa cost, some country need visa cost,
Remark of Cup paper lid cover packing machine LP450
- Price Term: FOB Ningbo port, China. (INSURANCE OUT OF CHINA COVERED BY THE BUYER)
- Payment Term: T/T payment (30% deposit, 70% before delivery). ** The buyer is welcomed to test machine before delivery.
- Delivery Time: 30~50 working days at sight the deposit. (actual delivery time given while order confirm)
- Package: Standard export package. (need special package, please info us in advance).
- Warranty: One year from the equipment arrival.
- Power Source: The power source: 380V 3-Phase, 50/60Hz (R, S, T, N line, please confirm power source before start order).
Price of LP450 paper lid packing machine
