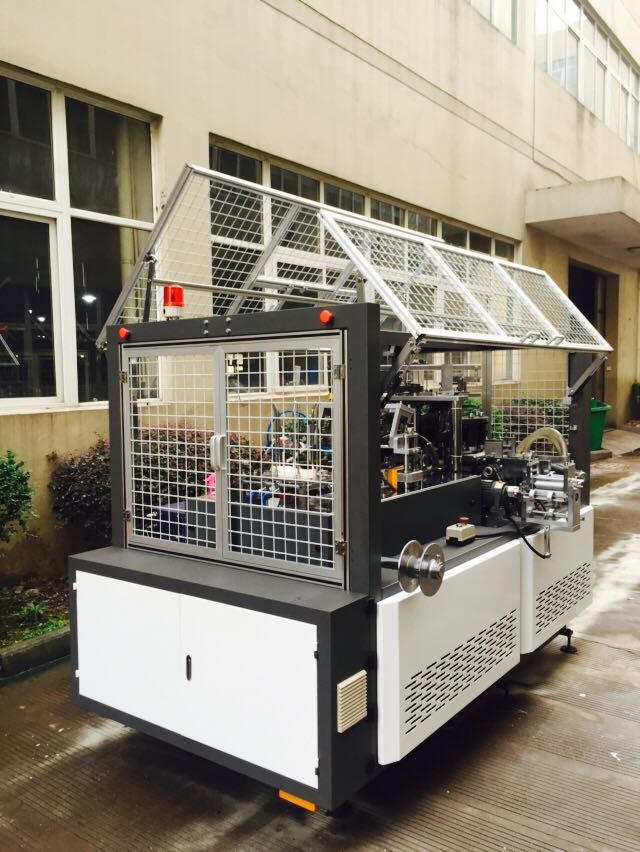

Iran 8oz paper cup forming machine new tech hot

  • Iran 8oz paper cup forming machine
  • Price: US$40,000,
  • Speed: 150~160 pcs/minute,
  • Cup size: 4~16oz,
  • Height: 45~135 mm,
  • New tech servo replace old mechanism,
  • One servo control one part, less maintenance,
  • Quality servo high efficient, stable, reliable,
  • 10pcs main mold + 8pcs curling mold,
  • Application: hot cold coffee tea cola juice paper cup,
BASIC INFO Inquiry price

Info & Video of Iran 8oz paper cup forming machine

Watch Iran 8oz paper cup forming machine operation demo video

More vidoe list on youtube: https://www.youtube.com/@Feenot/featured

New tech Iran 8oz paper cup forming machine speed 150 pcs/min, make 4~16oz hot cold drinks paper cup, all servo replace old cup machine mechanism, reliable.

Firstly adopt new tech all servo system instead of old bulky long shaft-cam-gear-chain mechanism system, which keep the machine easy maintenance.

Old cup machine very difficult to repair, maintenance, change parts, while any parts broken, require the user to move all the structure, which the user can not change or repair, even the supplier can not repair though send technician for repair.

While New tech ALL SERVO paper cup machine, one servo control one movement function, easy maintenance, and easy find the problems by sight, simple operate.

It makes paper cup bowl container after the following process: cup fan sucker and feed, cup side wall sealing by ultrasonic, lift the cup wall to main mold, bottom disc punch & insert to cup wall, heating, bottom knurling, cup top rim curling, discharge & rejection, count and packing.

While connect to the paper cup paking machine, make it full automatic, one packing machine online with 4, 6, paper cup bowl container machines.

Application: hot drinks coffee tea paper cups, cold colo cola juice milk paper cups, ice cream paper cups, fries chips cups, so on food package solution.

Specification of Iran 8oz paper cup forming machine

  • Model: 150S Servo,
  • Speed: 150 pcs/minute,
  • Cup size: 4~16oz,
  • Top: 45~100 mm,
  • Bottom: 38~70 mm,
  • Height: 45~135 mm,
  • Material: 150~320 gsm 1PE & 2PE paper,
  • Weight: 3400KG,
  • Machine:2500x1650x1900mm,
  • Collector: 1100 x 1100 x 2100mm (against cup size ),
  • Total power: 35KW, Working power 15KW,
  • Power: 380V 3-Phase 50/60 Hz,
  • Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),
  • Application: hot drink coffee tea paper cup, cold drink cola juic paper cup,

Iran 8oz paper cup forming machine

Price of Iran 8oz paper cup forming machine

  • How much is Iran 8oz paper cup forming machine cost? Want more information?
  • Email: Damond@feenot.com
  • QQ: 853962000@qq.com
  • Wechat/Whatsapp: 0086 153 5591 9299
Inquiry Price

your country code + mobile number
