Info & Video of Paper cover machine 120s
Watch Paper cover machine 120s operation demo video
More vidoe list on youtube: https://www.youtube.com/@Feenot/featured

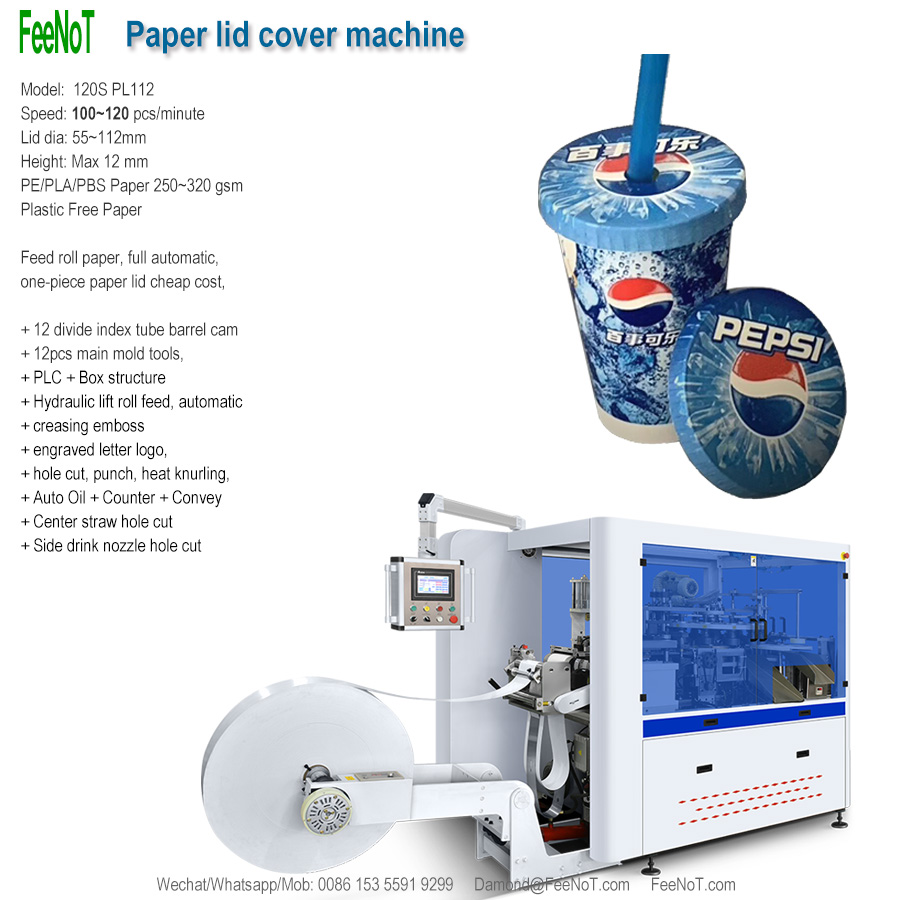

New tech Paper cover machine 120s speed 120 pcs/min, makes dome & flat paper lid cover cap for paper cup bowl container, hot cold drinks lid, plastic free.
Firstly, paper cup lid machine is research and designed for match paper cups, more and more place ban plastic, paper cups is widely in market, but not a single paper lid match paper cups, so we spend 2 years to design the one piece paper lid cover cap for cup bowl container.
Second, right now we have the one piece paper lid style as following, straight lid, stack lid; flat lid, dome lid; center hole drink lid, side hole drink lid, hot drinks lid, cold drinks lid.
Paper cup lid cover machine is a full automatic machine with the functions: feed roll paper, auto pull paper and feed, auto creasing (make the forming guide line), emboss (can make emboss, logo), hole punch(make hole for straw), punching (punch the roll paper to lid open disc), auto feed disc to mold, heating, folding, knurling, and discharge, with convey and counter for collection, full automatic.
While connect to paper lid packinig machine, count and pack paper lid to plastic film bag, even paper bags, full automatic, plastic free.
It is an ideal paper container forming machine, making paper cup lid cover cap replace plastic, eco friendly, and paper lids are hot sale in markets.

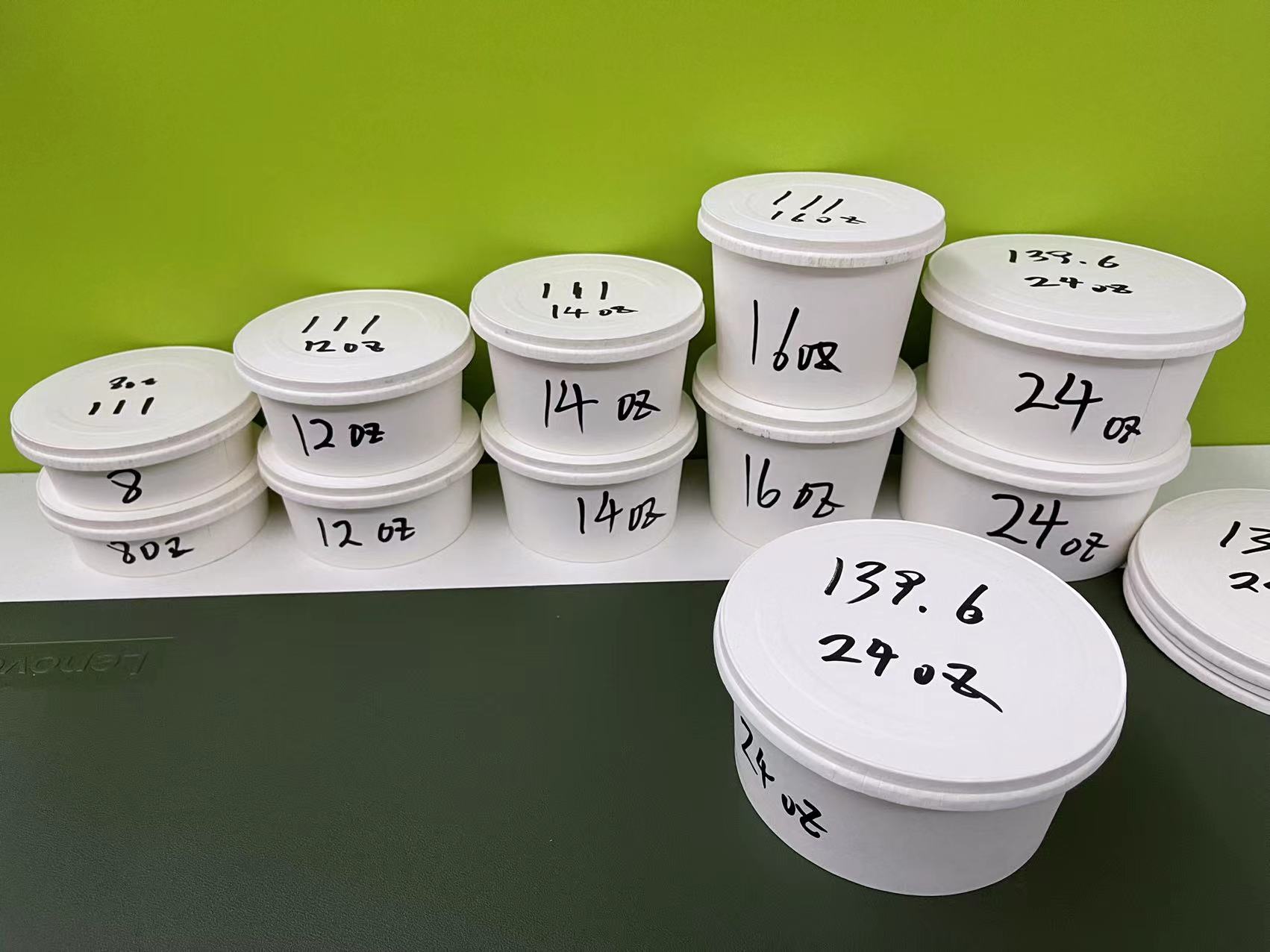

Application: paper carton lid cover cap for cup bowl container, chips, tubes pack, snacks pack, ice cream cover, cheese cover, a lot of package industry.
Specification of Paper cover machine 120s
- Model: 120S 112,
- Speed : 100~120 pcs/minute;
- Lid size: 55~112mm,
- Height: 8~12 mm,
- Material: PE/PLA/PBS coated cup paper, plastic free water coated paper (KOTKA barrier coating paper ),
- Paper Weight: 35~55 um (0.35~0.55mm, 250~450 gsm), best 320gsm,
- Weight: 3300KG,
- Pack size: 3450 x 1380 x 2180mm,
- Total power: 15KW,
- Power: 380V 3-Phase 50/60 Hz,
- Air Source : Air Pressure: 0.4Mpa, Air output: 100~300L/minute;
- We Reserve the right to alter specifications without prior notice.
- Application: paper lid cover cap for cup bowl container,
- Other Application: cover for chips cheese tubes cake muffin package.
Advantage of Paper cover machine 120s
- PLC+HMI+Servo, high speed, intelligent,
- one piece/layer paper lid, cost cheaper,
- feed roll paper, full automatic, less labor,
- auto creasing, emboss, make the guide line,
- logo engraved, replace print, save cost,
- center straw hole cut,
- side drink hole punch, coffee, cola, juice,
- auto heating, knurling, make lid,
- 12 divide tube barrel cam,
- 12pcs main mold/tools,
- 2pcs ceramic hot air heating,
- auto count, convey,
- connect LP-450 lid packing machine, full automatic,
- paper lid packing machine,
Advantage of paper lid cover cap
- One piece paper lid, cost cheap,
- feed roll paper, full automatic, easy operation,
- Easy drink nozzle/hole cut, choose center hole X/O cut or not, make lid for cold & normal drink,
- Simple side drink hole punch, for coffee tea,
- Inside emboss knurling lock, with paper lock-design, prevent water spread out,
- ECO friendly, use paper material, all world plastic control or banned, will be great market,
- Print beautiful artwork on paper lid more easy than plastic lid (especially print together with cup artwork, looks excellent),
- Amazing customize logo print, customize lid print, and excellent match the customize cups,
Shortage of paper lid cover cap
- Paper lid can not lock very tightly same as plastic lid,
- Carton paper lid cover can not make emboss drink nozzle like plastic lid,
- Paper cover cap lid can not be re-used as plastic lid, one time use only,
- The paper lid will be slowly unfolded/open while water into the lid knurling part (some kind of paper),
- 1PE Paper lid will be slowly unfolded by hot steam (need steam out hole cut, and need 2PE/double PE paper for hot),
- Quality PE/PLA/PBS film coated paper make quality paper lid/cover, Recommend use 2PE paper to make paper lid
