Info & Video of Paper cup dome lid pack machine
Watch Paper cup dome lid pack machine operation demo video
More vidoe list on youtube: https://www.youtube.com/@Feenot/featured

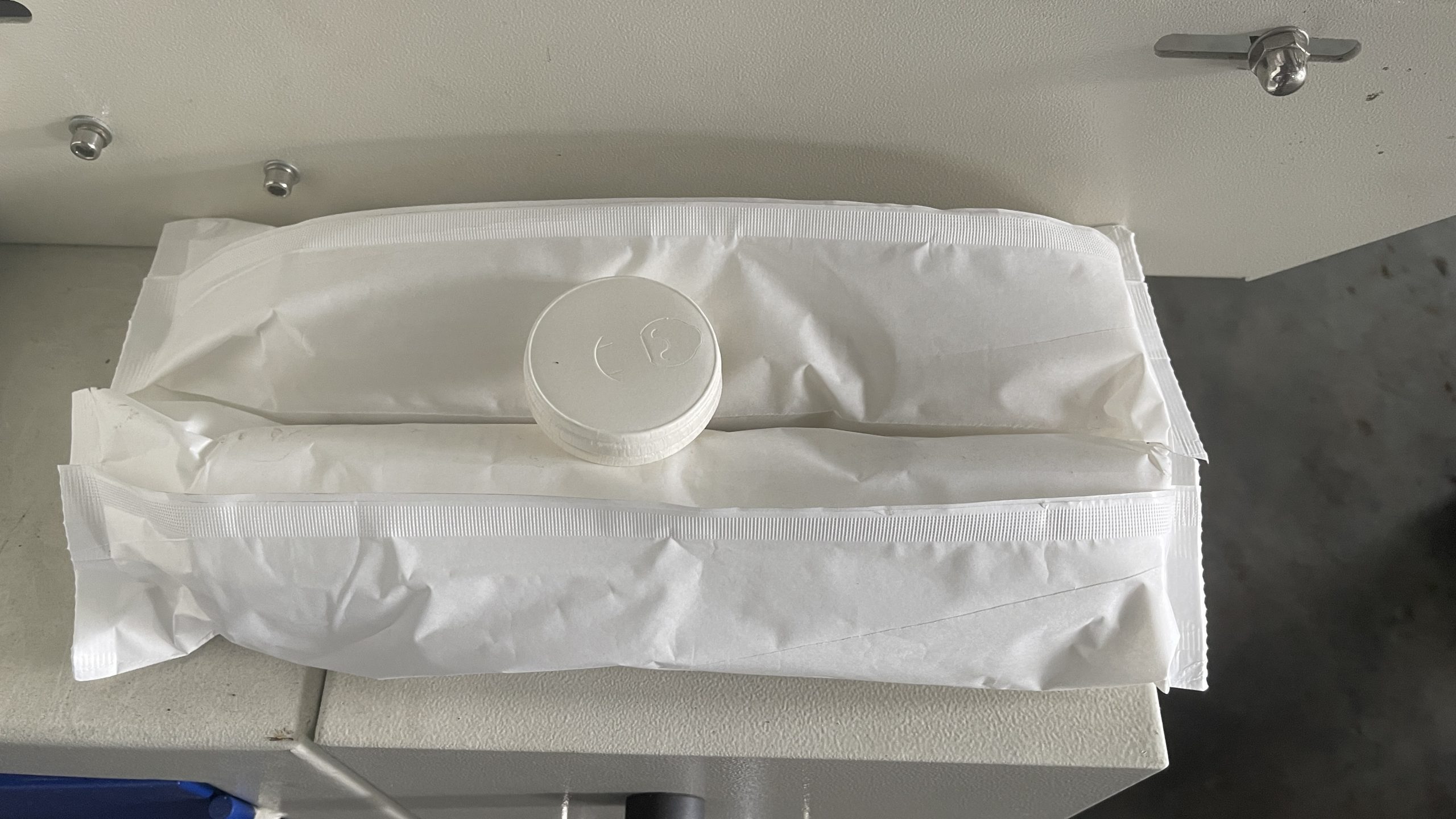

New tech Paper cup dome lid pack machine speed 10~30 bags/min, auto count, pack paper lid cover cap into plastic film bag, bag auto 3 side sealing.
Packing machine is an automatic machine, widely packing solid items.
Devoloped on customer requirement, to packing paper lid cover cap, with auto count, lid slide down, puch and collect, stack, pull every 50pcs lid into film bag, machine auto make 3 side sealing plastic film bag, online with paper cup lid machine, full automatic.
Widely used to pack solid items, such as soap, biscuits, bread, instant food, moon cakes, cakes, candies, medicines, daily necessities, five kinds of metal parts, cartons, paper cups, paper lids, paper plates, trays, etc.
Application: making 3 side seal plastic film bag, packing paper lid cover cap, paper cup bowl container, paper dish plate tray, paper box container, etc.
New technology, use 80gsm light PE film coated paper, auto make 3side seal paper bag, and pack paper lid cover cap cup box container.
Specification of Paper cup dome lid pack machine
- Speed: 10~30 bags/minute,
- Lid diameter: 40~ 120 mm diameter,
- Bag length: 100~600mm,
- Max film width: 450mm,
- Film: OPP, CPP, HDPE, LDPE, PP, POF,
- Film thickness: 15~30 um (0.15~0.3 mm),
- Film Max unwinding diameter: 450mm,
- Fiml core: 3inch,
- Total power: 2.8KW,
- Power source: 220V single phase, 50Hz,
- Air: pressure 0.6MPa, out put 300~500 L/minute,,
- Weight: 500KG,
- Size: 2250 x 800 x 1340 mm on order, against lid size,
- Power: 380V 3-Phase 50/60 Hz,
- Air Source : Air Pressure: 0.4Mpa, Air output: 100~300L/minute;
- We Reserve the right to alter specifications without prior notice.
- Application: packing paper lid cover cap cup bowl container,
- Other application: packing solid items, soup, plate, dish, box, metal,
Flow chart of packing paper lid cover cap
- the lid come out from lid machine slide to pack machine,
- auto feed lid and count to stack function,
- after lid arrival set number, send to film pack machine,
- PLC program control, sensor detect lid, send film (set length),
- wall horizontal seal & vertical side seal cut blade.
- convey transfer packed bag to carton box or pack area.
Flow chart of packing paper cup bowl containers
- Connect to cup machine, every 20 30 50cups stack feed,
- Sensor and PLC keep stable and reliable.
- Film wall gear heating seal & two side seal blade cut,
- Convey the bags to carton box or connect to shrink machine.
- Can set double row or single raw pack.
- Against customer order, connect 2, 4, 6, sets cup machines.
Price of Paper cup dome lid pack machine
- How much is Paper cup dome lid pack machine cost? Want more information?
- Email: Damond@feenot.com
- QQ: 853962000@qq.com
- Wechat/Whatsapp: 0086 153 5591 9299
