Watch 70s popcorn paper cup machine operation demo video
How to make paper bowls? More vidoes on youtube: https://www.youtube.com/@Feenot/featured
New tech 70s popcorn paper cup machine speed is 50~70pcs/min, make take away to go paper box, noodle popcorn take away box container, stable & reliable.
It makes paper bowl container after a whole function for example: cup fan suck, cup body ultrasonic sealing, cup body lift to main mold, bottom punch and insert to cup body, bottom pre fold, heating, bottom knurling, cup top curling, discharge, count and pack desk.
First, 70s popcorn paper cup machine developed on oc12 paper cup machine, which is stable running for over 10 years in market.
Second, from customer report, we improved the machine system, 8 divide tube barrel cam control the 8 mold, reliable, and long life time.

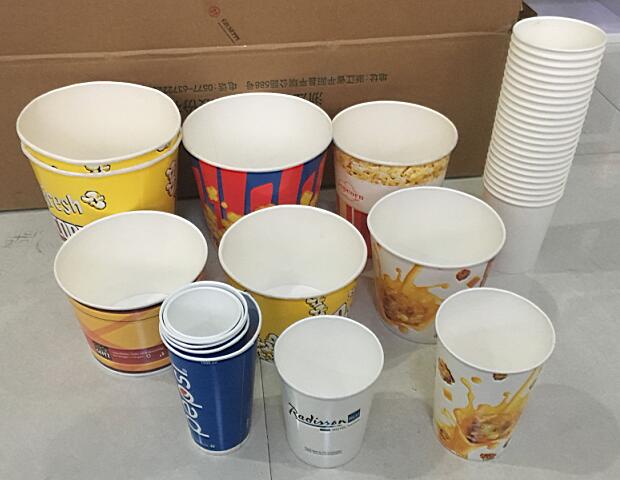

Widely application: ice cream paper cup bowl, soup salad paper bowl container, popcorn bowl box, to go take away food box container.
specification of 70s popcorn paper cup machine
- Model: 70S T140 H180,
- Speed: 50~70 pcs/minute,
- Top: 75~140 mm,
- Bottom: 70~120 mm,
- Height: 70~180 mm,
- Material: 150~320 gsm 1PE & 2PE paper,
- Weight: 3000KG,
- Machine: 2450x1350x2100mm,
- Collector: 1500 x 450 x 1350mm,
- Total power: 15KW (ceramic hot air),
- Power: 380V 3-Phase 50/60 Hz,
- Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),
- Application: soup ice cream noodel paper bowl, take away contianer, to go box,
FeeNoT NEW Technology Machinery
FeeNoT new tech machinery focus on new technology all servo paper cup bowl making machine, ripple double wall paper cup machine, paper lid cover cap machine, paper plate dish machine, carton paper box container machine, multi-compartment paper lunch box machine, square rim paper cup bowl container machine, muffin cake machine, packing machine for cup bowl container lid cover cap, print machine, die cutting machine, paper cup material, customize printe paper cup fan stock, New tech paper container package solution.
ZBJ-X64 Popcorn Paper Cup Machine Vdeo:
ZBJ-X64 Popcorn Paper Cup Machine Picture:
ZBJ-X64-Popcorn-Paper-Cup-Machine, paper bucket machine
ZBJ-X64 Popcorn Paper Cup Machine Description:
ZBJ-X64 ultrasonic popcorn paper cup/bucket machine is special designed for making super paper cups (paper bucket), especially for making paper popcorn box.
Advanced:
1, Efficient design, Speed faster than old (20 pcs/m) model .
2, Automatic oil lubricate, machine last long,
3, Stable and durable machine movement.
ZBJ-X64 Popcorn Paper Cup Machine Details:
- HS Code: 8441309000
- Name: ZBJ-X64 Popcorn Paper Cup Machine
- Model:ZBJ-X64
- Rated Speed: 35~50 PCS/minute, (1800~3000 PCS/hour)
- Paper Cup Size: 32~64oz
- Raw Material: One or Two side PE film coated paper,Glossy printed paper (varnish printed paper, for popcorn, not care leakage so can use)
- Suitable paper weight: 200~450 gsm
- Power Source: 380V 3-phase, 50HZ
- Total Power: 7KW
- Working Power: 3.5KW
- Total Weight: GW/NW: 3100/2900 KG
- Pack Size (L*W*H): 3150 x 1450 x 2100 mm
- Working Air Source: Air pressure:0.4Mpa; Air Out-put:0.6m³/minute, User should BUY Air Compressor
- Cup Side Welding: Ultrasonic System
- Cup Bottom Heating: Hot air (need air compressor to supply air)
Advantage of 70s popcorn paper cup machine
- Speed improved from 20 to 50~70 pcs/min,
- Open cam easy maintenance compare with index gear box,
- One Cam (8 divide open cam),
- 8pcs main mold (steel + aluminium alloy),
- 25mm Thick Whole steel board structure base,
- PLC, intelligent control, automatic oil system,
- Cup wall welding: Ultrasonic,
- Bowl bottom heating: Ceramic hot air (2pcs 4.4KW),
- Robot collector or fly collector against cup bowl size,
Service of 70s popcorn paper cup machine
- Spare parts guarantee for one year in machine arrival.
- We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems (post charges covered by buyer). All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
- Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
- FREE: The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.(buyer should pay for his cost of ticket, hotel, food, etc).
- The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.
- Technician overseas Cost include:
- 1, Mechanic allowance, (for example one machine training 5days, on the way 2days, total 7days, $150*7=$1050).
- 2, Ticket cost, round ticket cost (different country the cost different),
- 3, Visa cost, some country need visa cost,
Remark of 70s popcorn paper cup machine
- Price Term: FOB Ningbo port, China. (INSURANCE OUT OF CHINA COVERED BY THE BUYER)
- Payment Term: T/T payment (30% deposit, 70% before delivery). ** The buyer is welcomed to test machine before delivery.
- Delivery Time: 30~50 working days at sight the deposit. (actual delivery time given while order confirm)
- Package: Standard export package. (need special package, please info us in advance).
- Warranty: One year from the equipment arrival.
- Power Source: The power source: 380V 3-Phase, 50/60Hz (R, S, T, N line, please confirm power source before start order).
Inauiry price of 70s popcorn paper cup machine
- How much cost of 70s popcorn paper cup machine? Want to know more information?
- Email: Damond@feenot.com
- QQ: 853962000@qq.com
- Wechat/Whatsapp: 0086 153 5591 9299
