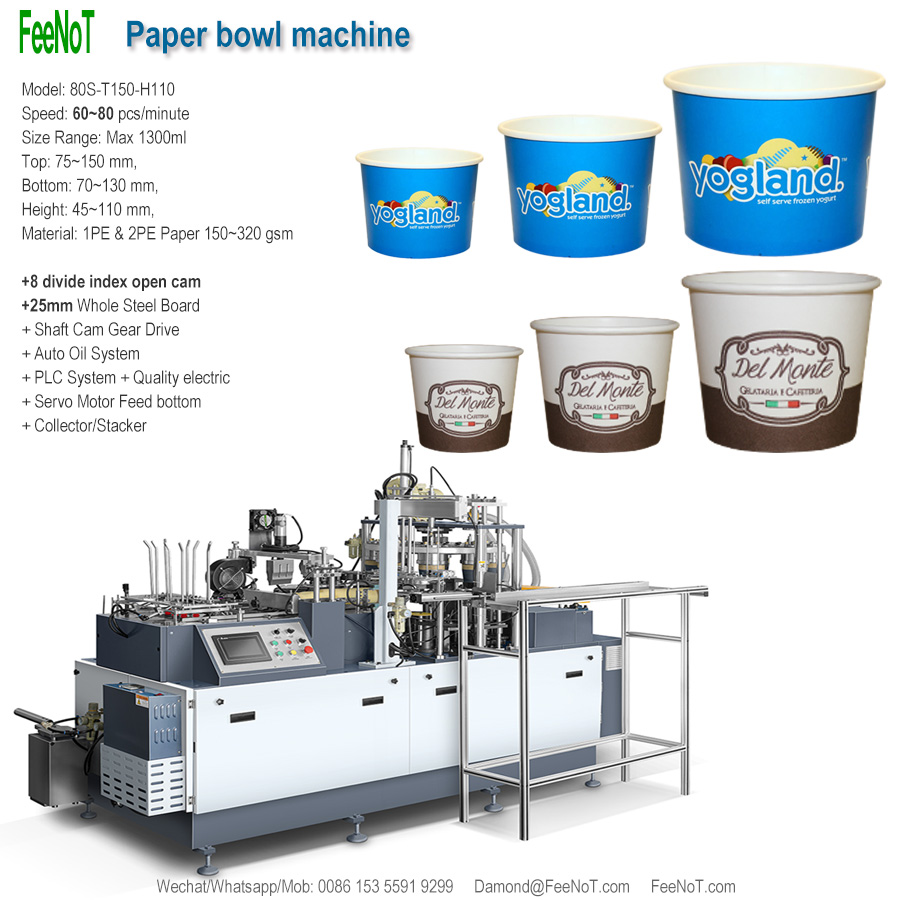

Watch USA ice cream paper bowl machine operation demo video
How to make paper bowls? More vidoe list on youtube: https://www.youtube.com/@Feenot/featured
New tech USA ice cream paper bowl machine speed is 80pcs/min, make ice cream soup noodle paper bowl container, popcorn take away box container, stable & reliable.
It makes paper bowl container after a whole function for example: cup fan suck, cup body ultrasonic sealing, cup body lift to main mold, bottom punch and insert to cup body, bottom pre fold, heating, bottom knurling, cup top curling, discharge, count and pack desk.
First, USA ice cream paper bowl machine developed on oc12 paper cup machine, which is stable running for over 10 years in market.
Second, from customer report, we improved the machine system, 8 divide tube barrel cam control the 8 mold, reliable, and long life time.
Application: ice cream paper cup bowl, soup salad paper bowl container, popcorn bowl box, to go take away food box container.
specification of USA ice cream paper bowl machine
- Model: 80S T150 H110,
- Speed: 60~80 pcs/minute,
- Top: 75~150 mm,
- Bottom: 70~130 mm,
- Height: 45~110 mm,
- Material: 150~320 gsm 1PE & 2PE paper,
- Weight: 3000KG,
- Machine: 2450x1350x2100mm,
- Collector: 1500 x 450 x 1350mm,
- Total power: 15KW (ceramic hot air),
- Power: 380V 3-Phase 50/60 Hz,
- Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),
- Application: soup ice cream noodel paper bowl, take away contianer, to go box,
Advantage of USA ice cream paper bowl machine
- Speed improved from 40 to 80 pcs/min,
- Open cam easy maintenance compare with index gear box,
- One Cam (8 divide open cam),
- 8pcs main mold (steel + aluminium alloy),
- 25mm Thick Whole steel board structure base,
- PLC, intelligent control, automatic oil system,
- Cup wall welding: Ultrasonic,
- Bowl bottom heating: Ceramic hot air (2pcs 4.4KW),
- Robot collector or fly collector against cup bowl size,
